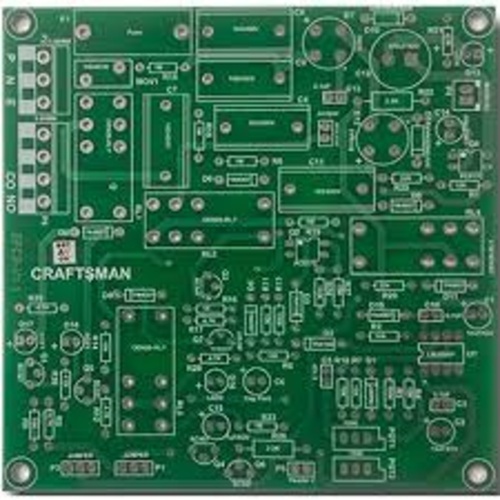

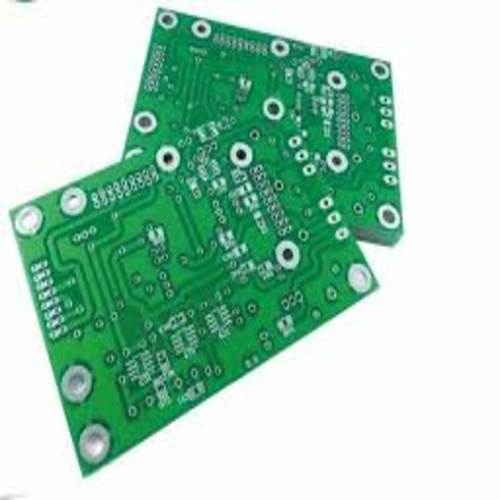

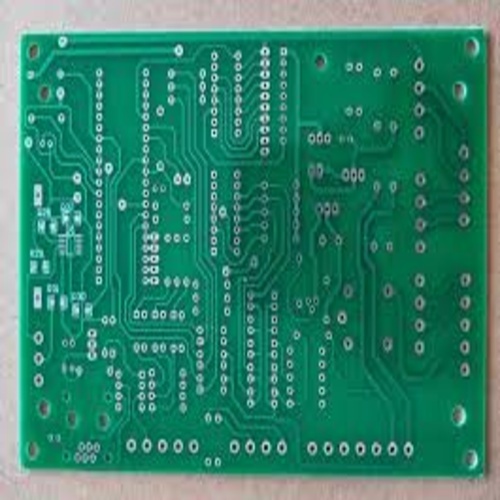

DOUBLE SIDE PTH PCB

About DOUBLE SIDE PTH PCB

A double sided Plated Through Hole (PTH) PCB is a 2 layer board with conductive copper circuitry on both top and bottom surfaces, separated by a substrate (often FR 4). Holes drilled through the board are plated with copper to form conductive paths (vias), connecting the layers. It is the industry standard for denser, more complex designs compared to single-sided boards.

Key Characteristics & Features:

Plated Through Holes (PTH): Holes are plated with copper, enabling both sides to interact. These act as vias for routing or as soldering points for leads.

Double Sided Routing: Conductive copper traces exist on both sides, allowing for higher component density and tighter packing of circuits.

Flexibility: Accommodates both Surface Mount Technology (SMT) and Through Hole Technology (THT) components.

Robustness: Increased durability compared to single sided boards.

Advantages:

Increased Complexity: Enables more complex circuit routing and higher density.

Optimal Space Utilization: More components can fit on smaller boards, reducing size constraints.

Improved Thermal Management: Improved heat dissipation due to copper coverage on two sides.

Versatile Applications: Extensively used in power supplies, converters, industrial controls, and communication equipment.

Manufacturing Process:

Drilling: Holes are drilled for vias and components.

Plating: Copper is plated inside the holes via an electrolytic process to connect the top and bottom layers.

Imaging/Etching: Circuits are printed and etched on both sides.

Solder Mask/Silkscreen: Protective coating and identification marks are added.

These PCBs are frequently used in daily electronics, such as lighting, consumer electronics, and complex industrial systems.
